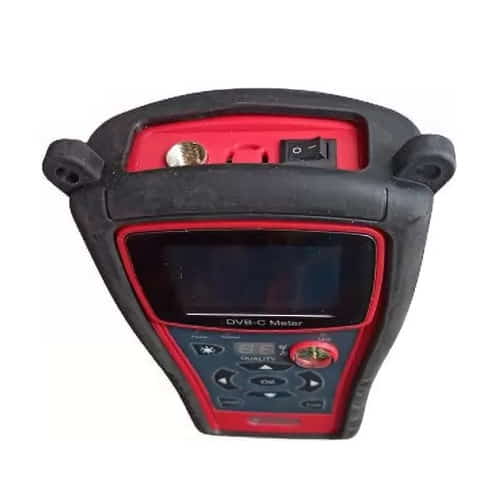

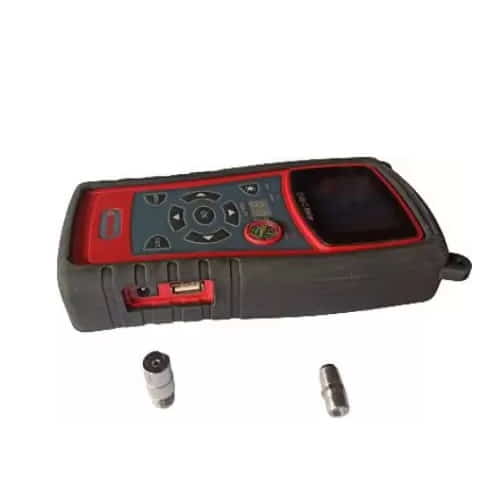

Solid SF-750 PRO Cable TV dB Meter

If you are a Cable operator or MSO then it is a cable TV dB meter at the lowest price in India. This solid cable TV dB meter SF-750 pro is good for checking digital Cable TV signals.

Solid SF 750 Pro Features :

• Support DVB-C function
• Support Automatic channel scanning
• Build highlight LED
• Show the signal quality of the Nixie tube
• Built-in buzzer
• Support to check the power cable automatically
• Support to reset to defaults
• The unit of signal power supports dBm, dBuV
• Use USB 2.0 for software upgrades and data backup.

Specifications –

• Digital Channel Frequency – 47 to 862 MHz
• Impedance – 75ohm
• Signal level – -78 to -10dBm
• Symbol Rate – 1.4M to 7.5M baud
• Demodulation Scheme – 16QAM / 32QAM / 64QAM / 128QAM / 256QAM
• Demolution type – DVB-C
• Bandwidth – 6MHz / 8Mhz

Functions –

Tilt –

The tilt / Level list test is the effective solution to check the flatness and splitters’ attenuation of the cable system, DVB-C METER can get levels of 8 channels and observe the measurement results and graph easily.

After that Tilt Setup and tilt testing will be available.

Scan –

The Meter supports a channel scanning function to test the flatness and amplitude of the cable TV system quickly.

Trunk –

You can check the trunk voltage in this interface. You can check

• AC 0V to 120V
• DC 0V to 120V

CH Setting –

You can also add and edit your digital channel frequencies because different-2 Cable TV uses different-2 frequencies.

You can modify the channel parameters in this interface. You can add channels, Modify channels, and Delete digital RF Chanel for your Cable TV.

You can find other dB Meters here.

FAQs –

What is a DVB-C meter?

The DVB-C Meter is specially designed for installation and connection of digital Cable TV connections.

can we order cash on delivery Cable TV meter?

Yes, you can order cable TV DB meters online using cash on delivery and prepaid payment options on various online shopping portals. This solid db meter is available at the best price and comes with the latest solid db meter sf-750 pro software.
